Details
H5 Elite 採用鋼化玻璃前面板和內置 RGB 功能，可展示各種照明組件。憑藉優化的散熱性能和直觀的電纜管理，H5 Elite 是大多數構建的理想機箱。
- 底部內側面板上的預裝風扇傾斜以冷卻 GPU
- 鋼化玻璃前面板和內置 RGB 控制器
- 穿孔頂板提供最佳通風
- 直觀的電纜管理系統，帶有寬通道、掛鉤和帶子
- 無需工具即可訪問前面板和側面板
- 前面板支持 2 x 140mm 風扇或 280mm 散熱器
- 頂部面板最多支持 2 個 120mm 風扇或 240mm 散熱器
- 包括兩個預裝的 F140 RGB 風扇和一個 F120Q 風扇
Inside the Box
-
H5 Elite Case x 1
-
Front I/O split cables x 1
-
Brown box, PE bag, polyform, manual, accessory box & parts (including the screws) x 1
-
Tempered glass sticker x 1
-
Barcode sticker x 1

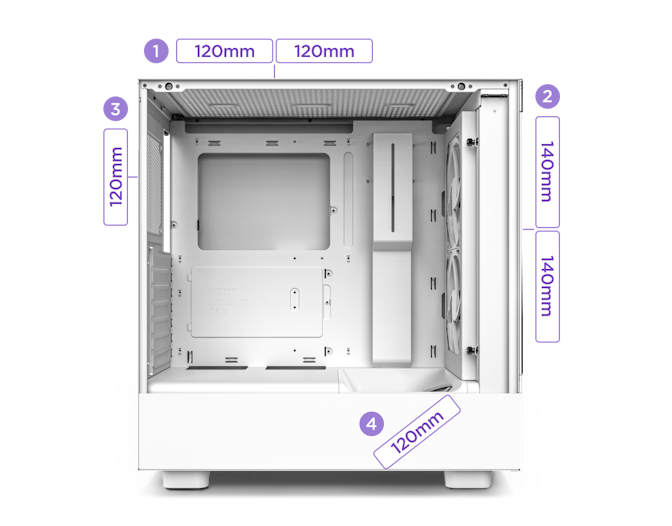

Fan Capacity
Radiator Capacity
KEY SPECS
-
Motherboard Support:Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm)
-
Enclosure Type:Mid-Tower
-
Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
-
Height:464 mm (With Feet)
-
Width:227 mm
-
Depth:446 mm
-
Weight:8.1 kg
COMPATIBILITY & CLEARANCE
-
Max CPU Cooler Clearance:Up to 165mm
-
Max GPU Clearance:Up to 265mm
-
Front Radiator Clearance:45mm
-
Cable Management:Up to 23mm
FRONT I/O PORTS
-
USB 3.2 Gen 1 Type-A:1
-
USB 3.2 Gen 2 Type-C:1
-
Headset Audio Jack:1
INCLUDED ACCESSORIES
-
Installation screws:1
-
Cable ties:10
-
RGB Lighting Controller:NZXT RGB Connector: 3 (Support up to 120 LEDs)
EXPANSION SLOTS
-
Standard:7
DRIVE BAYS
-
2.5":1+1
-
3.5":1
FAN SUPPORT
-
Front:2 x F Series RGB 140mm (Case Version) included
-
Top:2 x 120mm
-
Rear:1 x 120mm
-
Bottom:1 x F Series Quiet 120mm (Case Version) included
-
Filters:All Air Intakes
RADIATOR SUPPORT
-
Front:Up to 280mm
-
Top:Up to 240mm
-
Rear:Up to 120mm
FAN SPECS
-
Model:F140 RGB Fan
-
Speed:500 - 1800 RPM
-
Airflow:24.85 - 89.48 CFM
-
Static Pressure:0.94 - 3.39 mm-H2O
-
Noise:20 - 32.5 dBA
-
Fan Connector:4-pin
FAN SPECS
-
Model:F120Q Airflow Fan (Case Version)
-
Speed:1200 ± 240 RPM
-
Airflow:62.18 CFM
-
Static Pressure:1.05 mm-H2O
-
Noise:25.1 dBA
-
Fan Connector:3-pin
GENERAL
-
Warranty:2 Years
